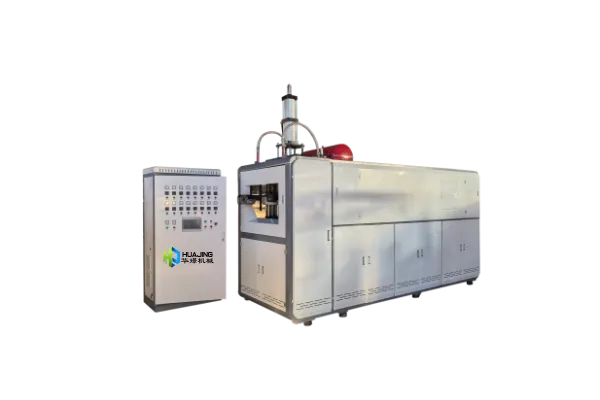

A plastic cup thermoforming machine is an automated equipment that heats plastic sheets and uses moulds to form them into plastic cups.

Below is a detailed introduction to its components and working principle:

I. Components

1. Heating System

   • Utilizes infrared heaters or hot air circulation systems to uniformly heat plastic sheets (e.g., PP, PET, PS) to their softening temperature (typically 120°C-180°C).

2. Forming System

   • Includes upper and lower molds and a pressure device. The molds are designed according to the product shape, and the pressure device uses vacuum adsorption, air pressure, or mechanical pressure to shape the softened plastic sheets into cups.

3. Cooling System

   • The formed plastic cups are rapidly cooled and set using air or water cooling systems to ensure stable product shape.

4. Cutting System

   • Employs punching molds or laser cutting equipment to separate the formed plastic cups from the sheet.

5. Stacking System

   • Automatically stacks the cut plastic cups for subsequent packaging and transportation.

6. Control System

   • Equipped with a PLC controller and touchscreen interface to adjust parameters such as temperature, pressure, forming time, and cutting accuracy, enabling automated operation.

7. Feeding System

   • Automatically feeds plastic sheets into the heating zone to ensure continuous production.

8. Scrap Recycling System

   • Collects and recycles cut scraps to reduce material waste.

II. Working Principle

1. Feeding and Heating

   • Plastic sheets are fed into the heating zone via the feeding system, where the heating system uniformly heats them to the softening temperature.

2. Forming

   • The softened plastic sheets are transferred to the forming area, where vacuum adsorption or air pressure adheres the sheets to the mold surface, shaping them into cups.

3. Cooling

   • The formed plastic cups are rapidly cooled and set within the mold using the cooling system.

4. Cutting

   • The cooled plastic cups are separated from the sheet via the cutting system.

5. Stacking and Collecting

   • The cut plastic cups are automatically stacked by the stacking system and collected at a designated location.

6. Scrap Recycling

   • The cut scraps are collected by the recycling system for reuse.

III. Workflow Diagram

1. Feeding → Heating → Forming → Cooling → Cutting → Stacking → Collecting

   • The entire process is continuous and automated, ensuring high-efficiency production.

IV. Technical Features

1. High Efficiency

   • High degree of automation and fast production speed, suitable for large-scale production.

2. Precision

   • Parameters are precisely adjusted via the PLC control system to ensure consistent product quality.

3. Energy Saving and Environmental Protection

   • Utilizes energy-efficient heating systems and scrap recycling systems to reduce energy consumption and material waste.

4. Versatility

   • Capable of producing plastic cups of different shapes and specifications by replacing molds.

V. Conclusion

Plastic cup thermoforming machines efficiently transform plastic sheets into plastic cups through processes such as heating, forming, cooling, and cutting. Their automated design and precise control systems make them essential equipment in the plastic product manufacturing industry. For more information, please contact relevant manufacturers for detailed technical support.

This introduction provides a detailed explanation of the components and working principle of plastic cup thermoforming machines, highlighting their efficiency, precision, and environmental benefits. For further details, please refer to the cited sources.
